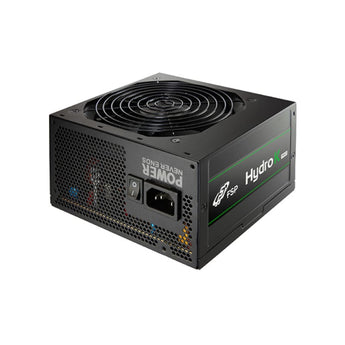

Fsp Hydro Pro K 500 W Non Modular Psu

The new Hydro K Pro PSUs comply fully with ATX12 v2.52 standard and the latest safety 62368 regulation as well and comes with high-grade ribbon cables, give your PC a polished look. The Hydro K Pro series is designed as a powerful single +12V rail that continually delivers maximum performance for the most demanding graphic cards, while FSP’s custom DC-DC design provides safety and power efficiency. Besides, with a 230V 80 Plus® rating, delivers over 88% high efficiency and low noise levels thanks to its hydraulic bearing fan design, where a large 120mm fan takes care of cooling duties when required, making it excellent for situations that are sensitive to size and noise.

FEATURES:

• Intel latest CPU ready


• Global safety approved


• Active PFC ≥ 0.9


• High efficiency ≧ 88%


• Powerful +12V single rail design


• Hold up time ≥ 17ms @ 80% load


• Double layer EMI filter


• 120mm hydraulic bearing (HYB) fan


• +5V & 3.3V DC to DC module design


• All black cables


• Complete protections: OCP/OVP/OPP/SCP

SPECIFICATIONS:

• Rated Output Power: 500W


• Form Factor: ATX


• 80 PLUS Certification: 80 PLUS® 230V Bronze


• Input Voltage: 200-240V


• Input Current: 4A


• Input Frequency: 50-60Hz


• PFC: Active PFC


• Efficiency: ≥ 88%


• Fan Type: HYB Fan, 120mm


• Protection: OCP, OVP, SCP, OPP


• Cable Connections:



  • ATX 20+4 x 1


  • 4+4 PIN x 2


  • PCI-E 6+2 x 2


  • SATA x 5


  • Molex (PERIPHERAL) x 2


  • Floppy x 1






• Dimensions: 15 x 14 x 8.6 cm

WHAT’S IN THE BOX:

• FSP Hydro K Pro 500W Bronze Non-Modular Power Supply – Black x1
